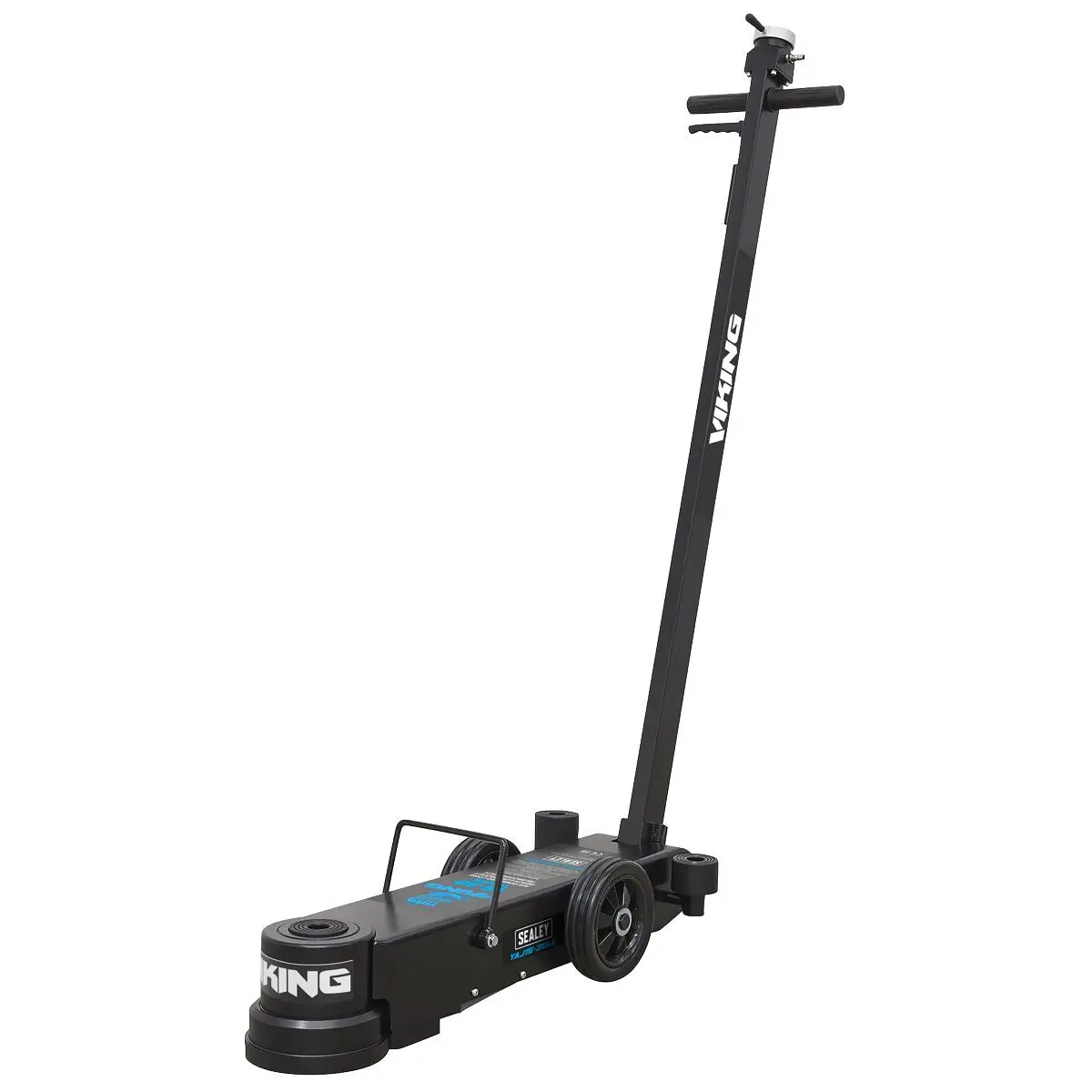

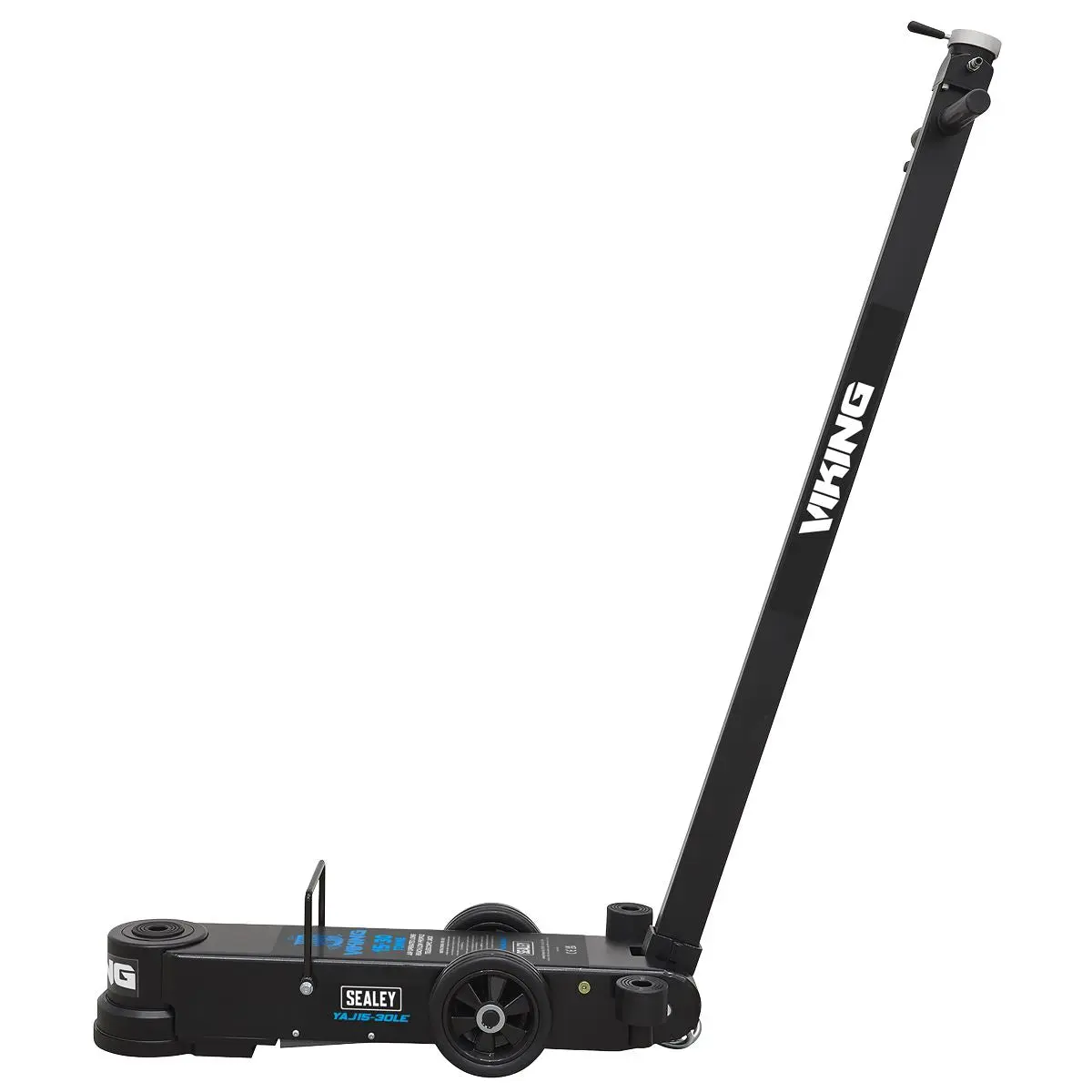

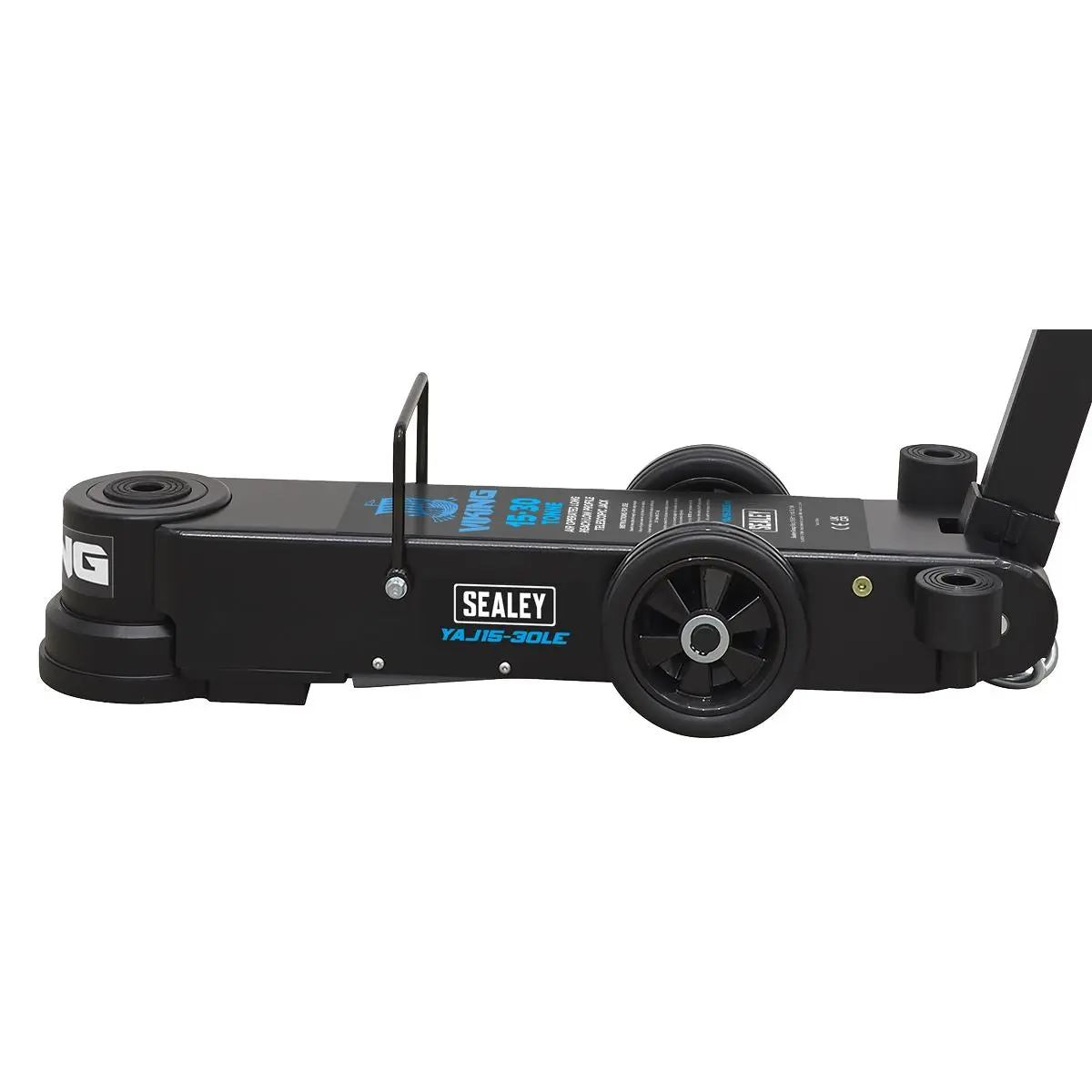

Sealey Viking Long Reach/Low Profile Air Operated Telescopic Jack 15-30 Tonne
Sealey Viking Long Reach/Low Profile Air Operated Telescopic Jack 15-30 Tonne
SAFETY LOCK - Spring loaded dead man's control enables safe, controlled lifting/lowering of the vehicle.
ADJUSTABLE HANDLE - Locks in position and can be used at three different angles to allow improved manoeuvrability and access around the vehicle.
AIR OPERATED CONTROLS - Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles.
ACCESSORIES INCLUDED - Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
3 Year Guarantee*.
Specification:
- Model No YAJ15-30LE
- Air Consumption: 11.5cfm
- Brand: Viking
- Capacity: 30 Tonne
- Chassis Length: 810mm
- Extensions: 45/75mm
- Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 343/30
- Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 409/15
- Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): n/a
- Maximum Length: 2190mm
- Minimum Saddle Height: 150mm
- Nett Weight: 52kg
- Overall Width: 295mm
- Piston Stroke: 139mm
- Screw Extension: n/a
- Width without Wheels: 215mm
- Working Pressure: 116-174psi
Catalogue Page: Page 847
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
