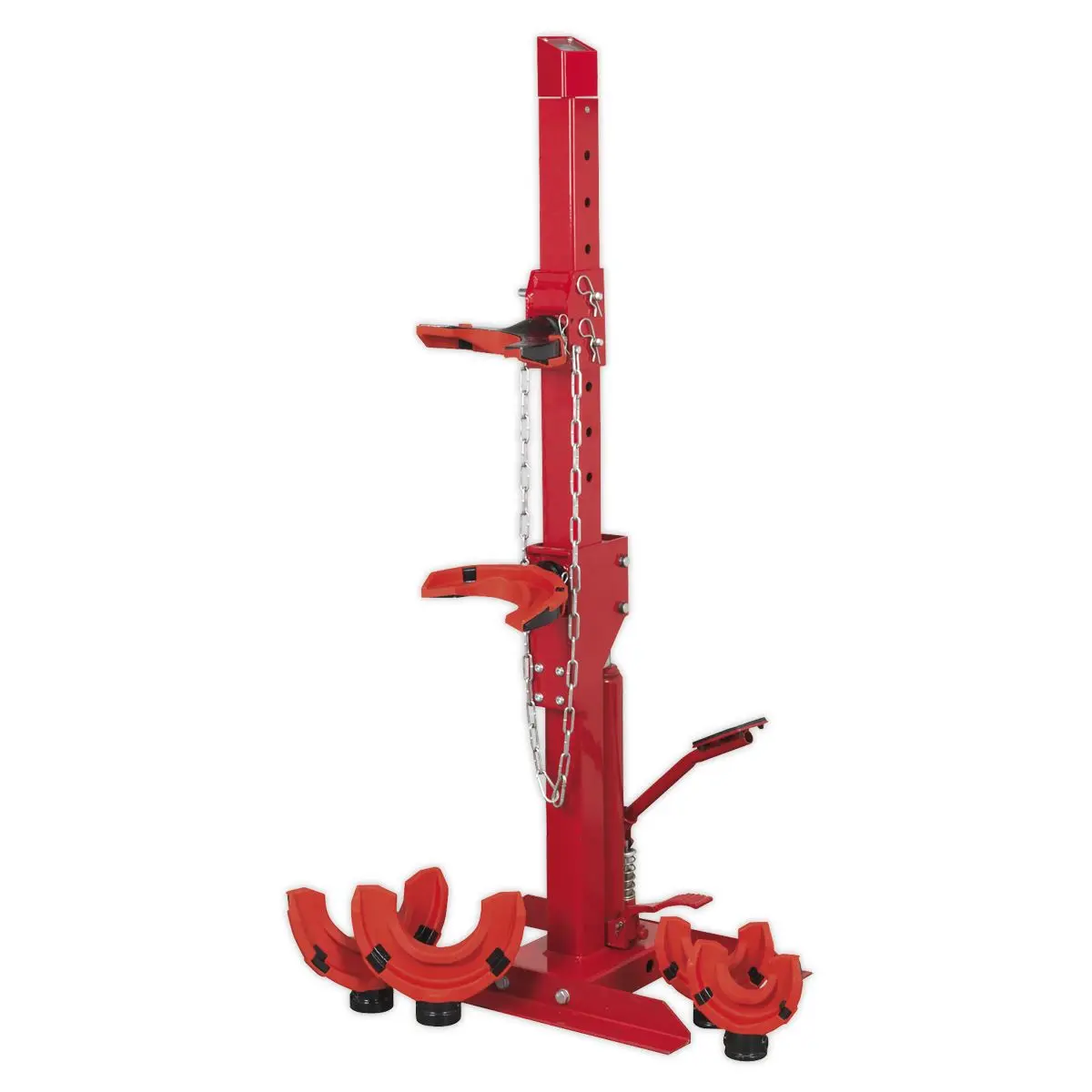

Sealey Hydraulic Coil Spring Compressing Station with Gauge 2000kg Capacity

Foot operated hydraulic unit, with gauge showing force applied to the spring under compression.

Supplied with three pairs of different sized interchangeable yokes, for a wide range of vehicle applications.

Fitted with plastic yoke protectors that protect the spring coating from damage, which can invalidate the vehicle manufacturer's guarantee.

Suitable for springs from Ø87mm to Ø202mm.

Maximum Load: 2000kg.

Specification:

• Model No RE2311
• Brand: Sealey
• Nett Weight: 42.09kg
• Maximum Load: 2000kg
• Upper Yoke Positions: 7
• Lower Yoke Travel: 320mm
• Yoke Specification: Size/Suitability:
• Small ID-OD: Ø87-129mm
• Medium ID-OD: Ø106-165mm
• Large ID-OD: Ø142-202mm
• Actuation: Foot Pedal

Product Guarantee: 1 Year
Catalogue Page: Page 526

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
