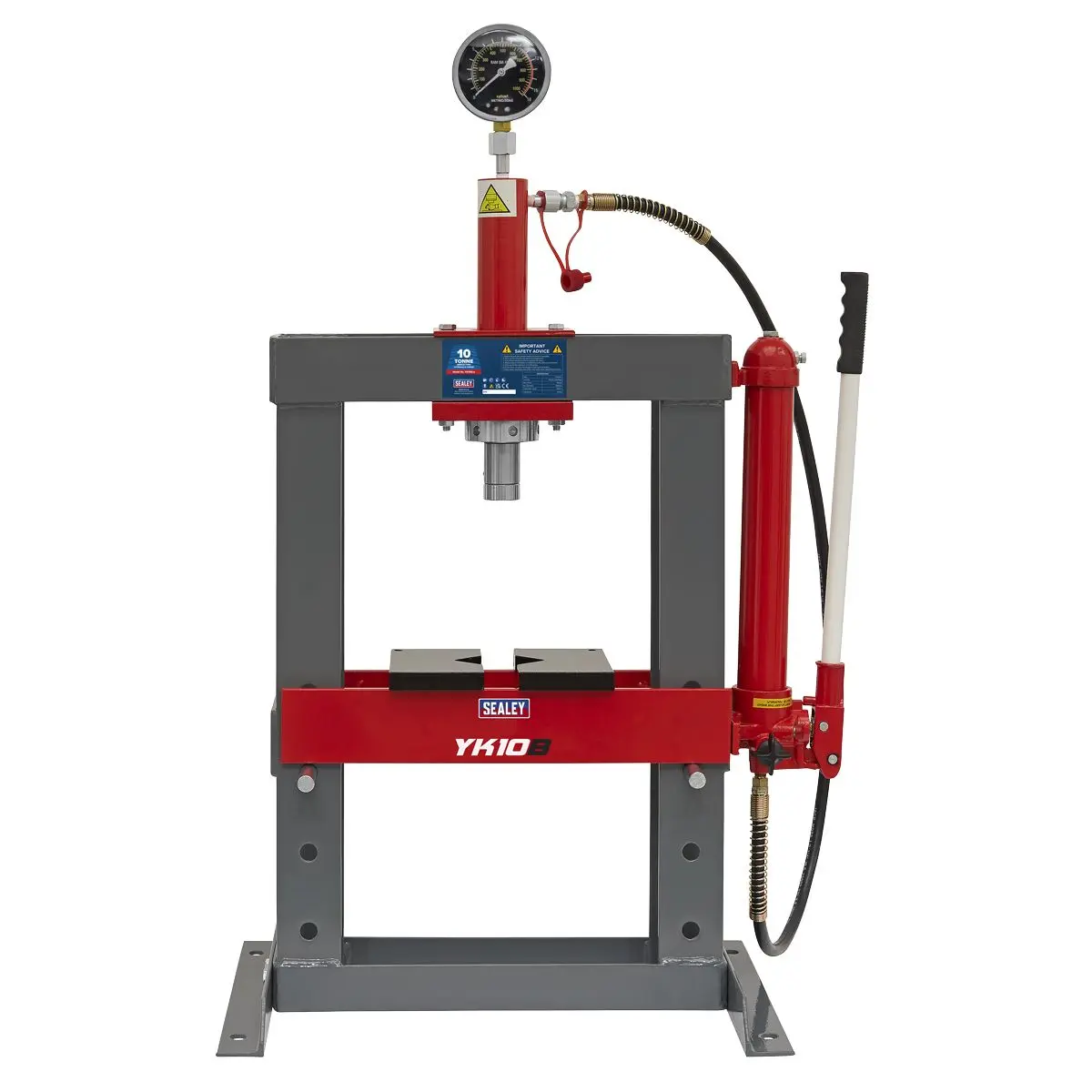

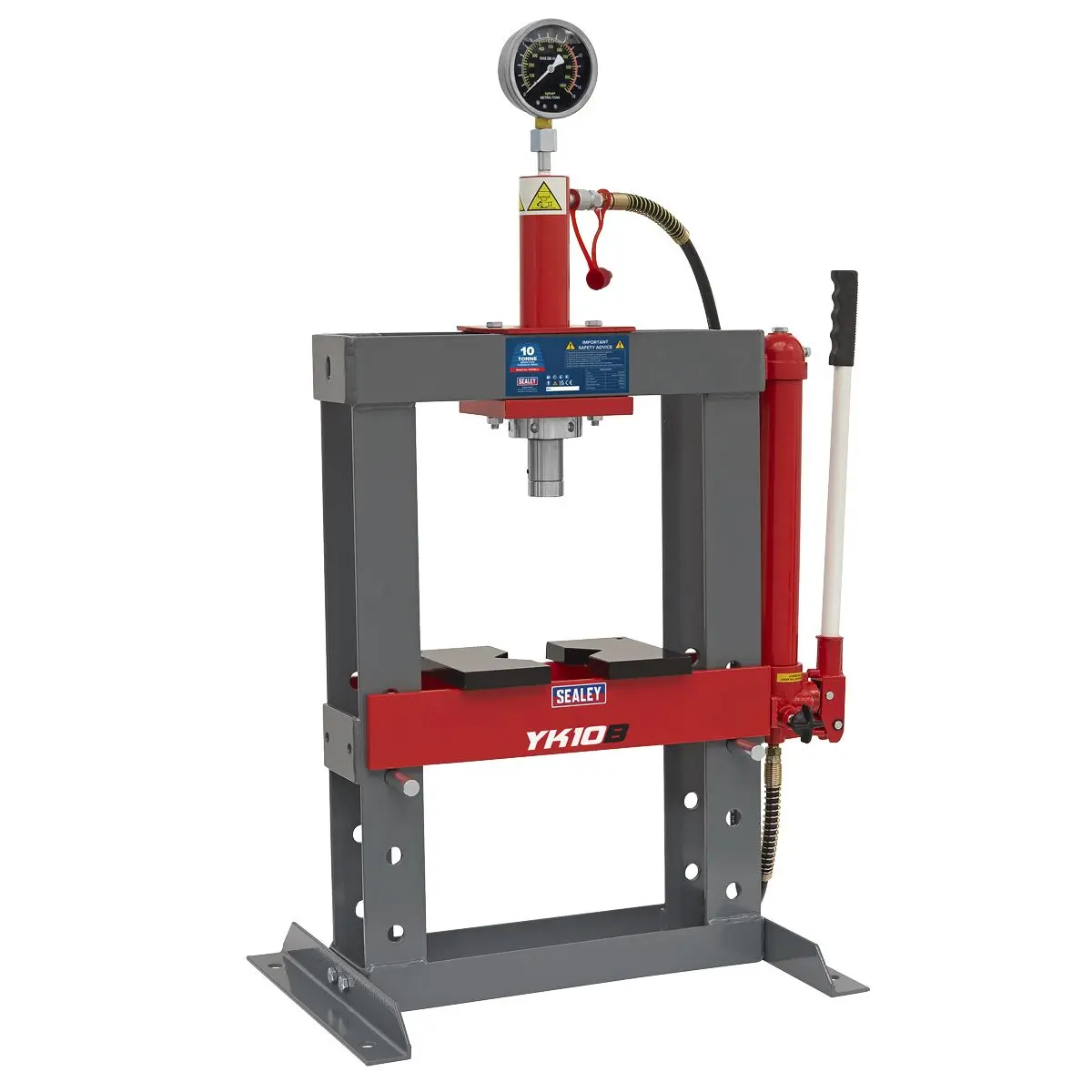

Sealey Hydraulic Bench Type Press 10 Tonne

HEAVY-DUTY FRAME - Made from high quality steel with a powder coated paint finish to help corrosion resistance.

MULTIPURPOSE HYDRAULIC SYSTEM - Detachable pump and ram allowing hydraulics to be used for other purposes when press is not in use.

TABLE ACCESSORIES - Includes flat pressing plates and extension tubes.

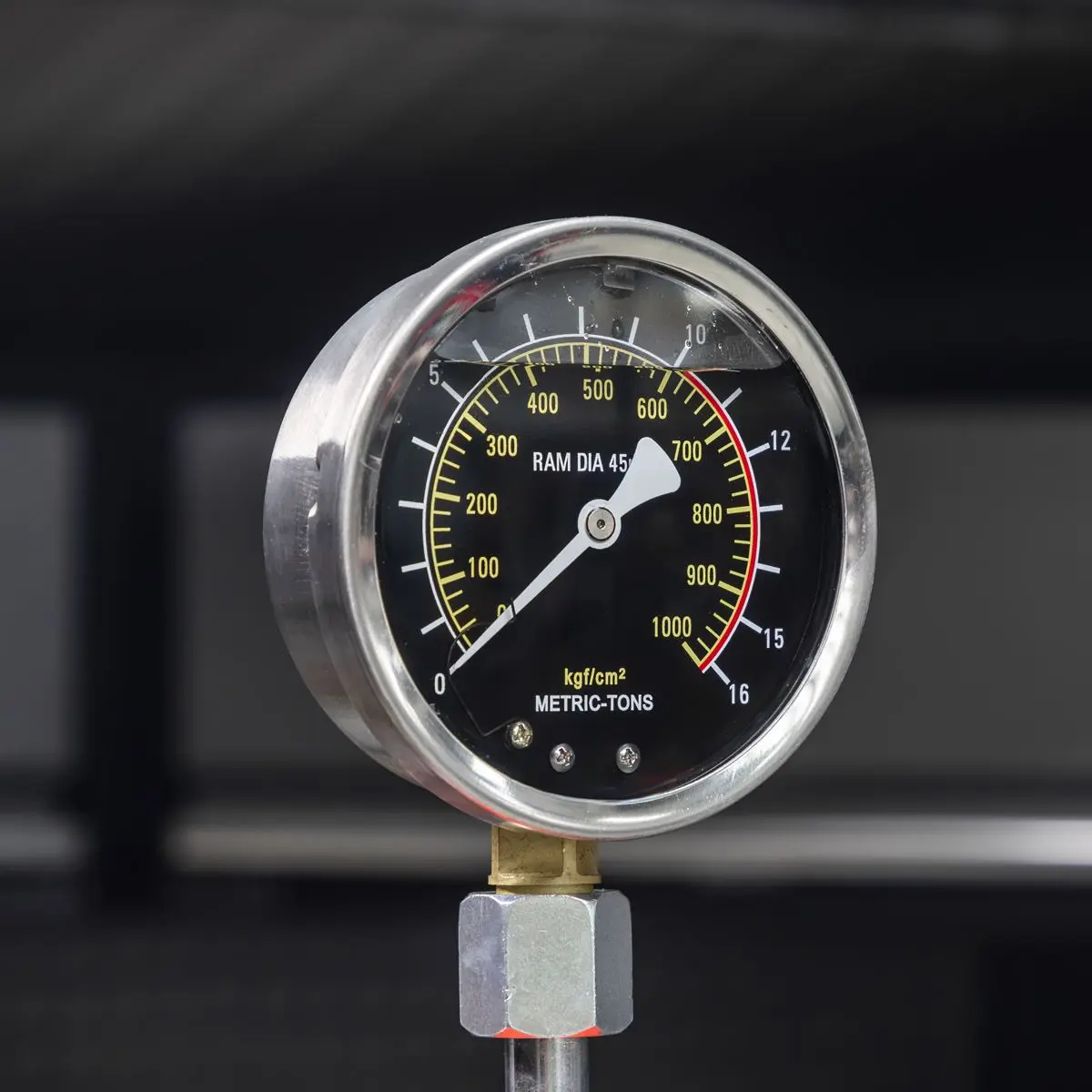

ACCURATE - Supplied with gauge.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No YK10B
• Bench or Floor Mounting: Bench
• Brand: Sealey
• Capacity: 10 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 190mm
• Maximum Height - Ram to Table: 365mm
• Minimum Height - Ram to Table: 110mm
• Nett Weight: 48.0kg
• Operating Table Width: 340mm
• Optional Accessories: n/a
• Overall Height: 1060mm
• Ram Diameter: Ø40mm
• Ram Stroke: 180mm
• Table Aperture: 115mm
• Type: Hydraulic
• Working Table Depth: 80mm
• Working Table Width: 340mm
• Working Table Width: 340mm

Product Guarantee: 1 Year
Catalogue Page: Page 896

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
