Sealey Jacking Beam 2 Tonne with Arm Extenders & Flat Roller Supports
Sealey Jacking Beam 2 Tonne with Arm Extenders & Flat Roller Supports
Fully certified and approved to comply with MOT requirements.
Features 2-stage mechanical safety lock and telescopic finger guards to prevent accidental injury.

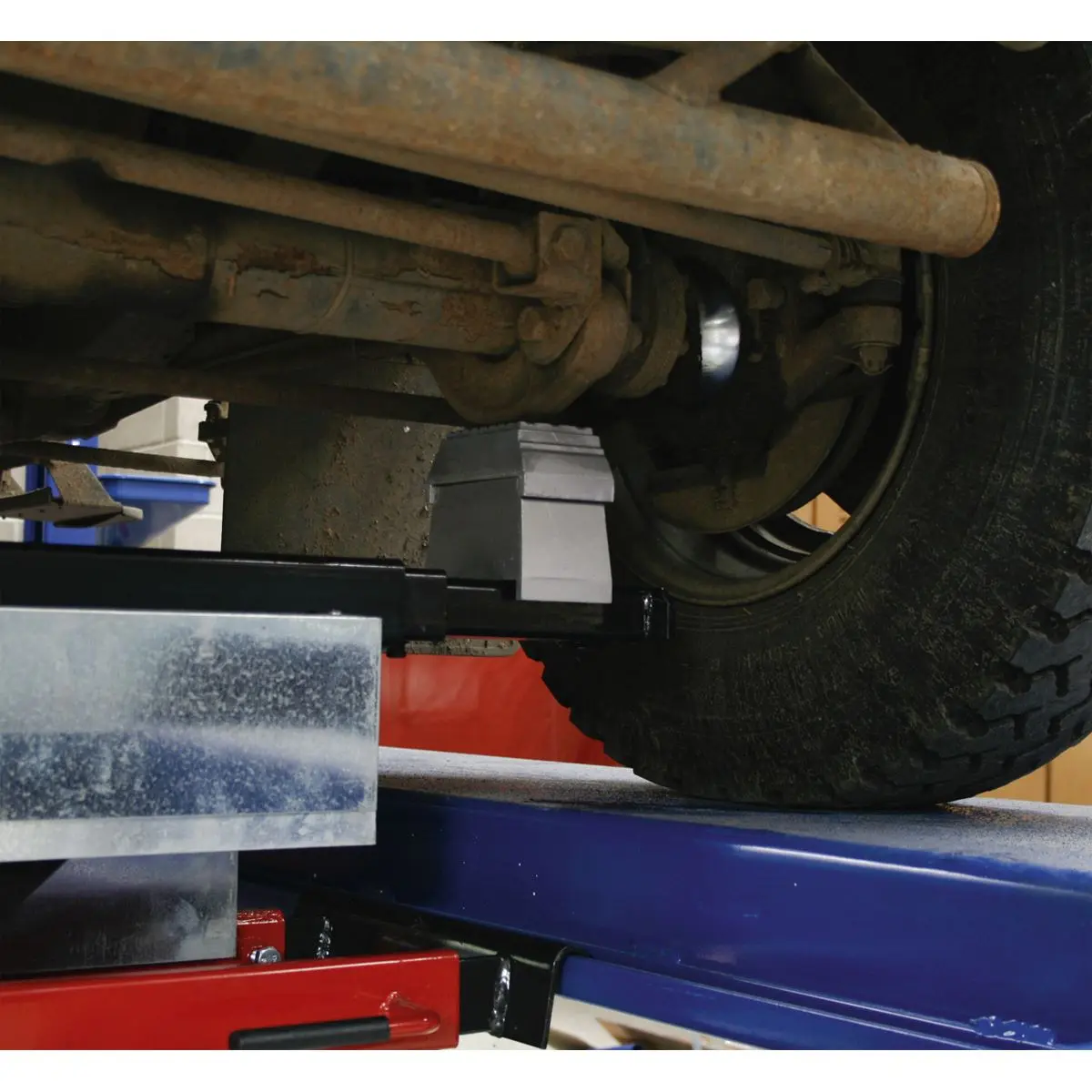

Supplied with two pairs of aluminium support blocks.

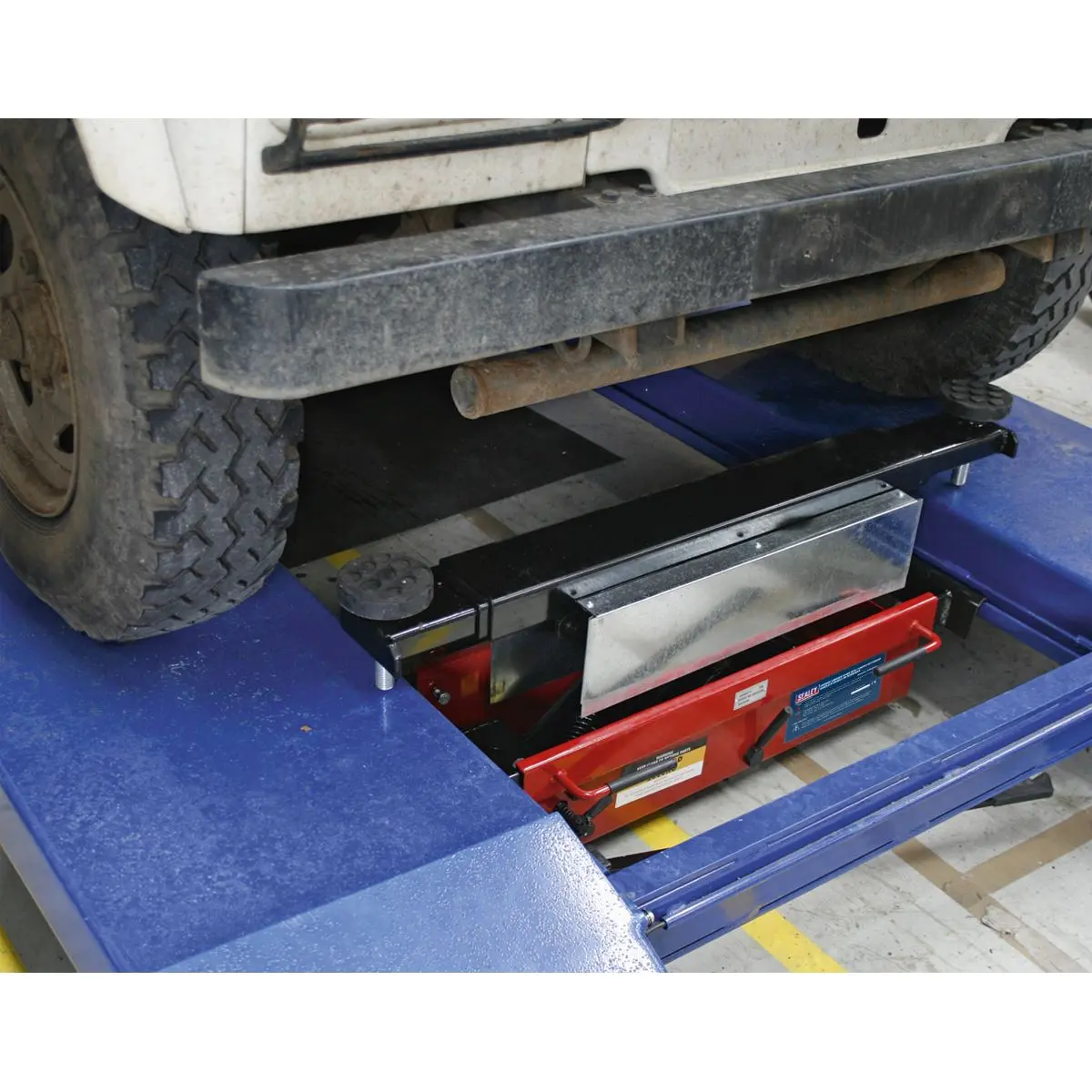

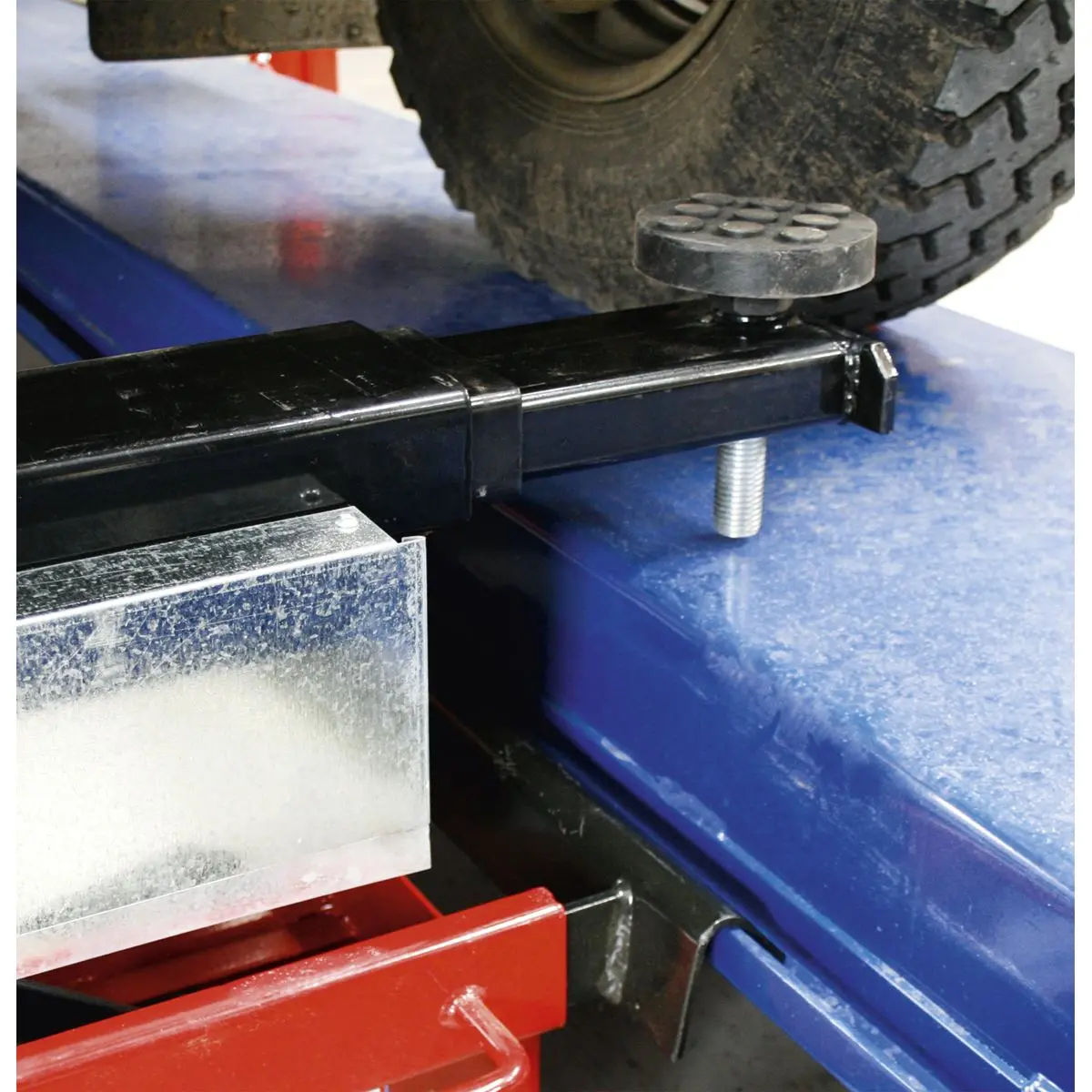

Beam has spring loaded flat arms with roller bearings - when unloaded, these support the weight of the beam, allowing the entire unit to run smoothly along the pit or ramp, but when loaded, they firmly stabilise the unit.
Optional hook arms supplied.
Wide lift configuration meets MOT recommendation for lifting on jacking point.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No SJBEX200
- Beam Lift: 95-300mm
- Brand: Sealey
- Capacity: 2 Tonne
- Load Arm Reach: 850-1600mm
- Nett Weight: 94kg
- Optional Accessories: n/a
- Support Arm Reach: 780-1075mm
Catalogue Page: Page 873
Downloadable Files:
- Instructions: View Here
- Material Safety Data Sheet: View Here
- Parts Diagram: View Here
