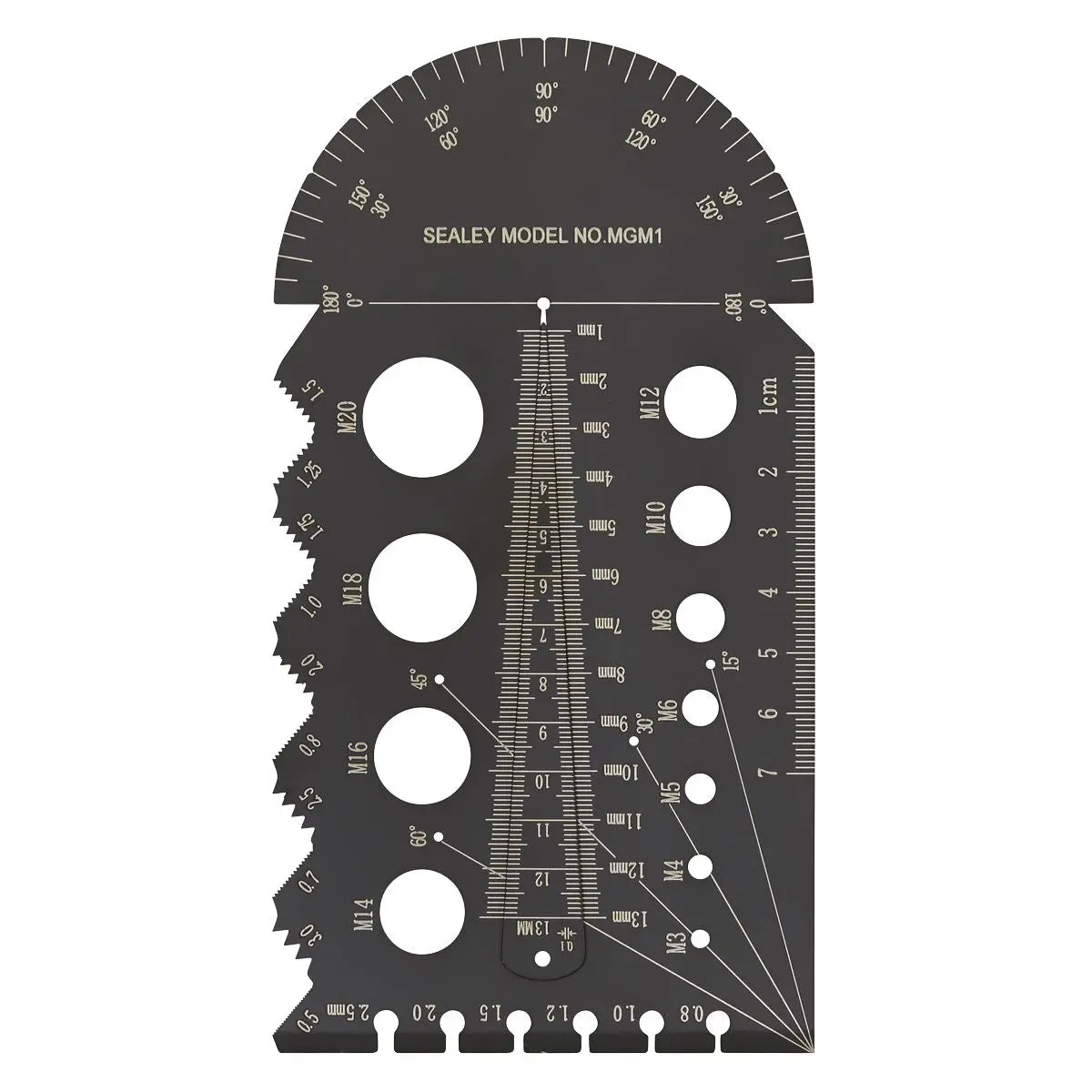

Sealey Metric Multi-Gauge

Stainless steel metric multifunction thread/pitch identification gauge.

Pitches: 3, 2.5, 2, 1.75, 1.5, 1.25, 1, 0.8, 0.7, 0.5mm.

Bolt Screw Diameters: M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20.

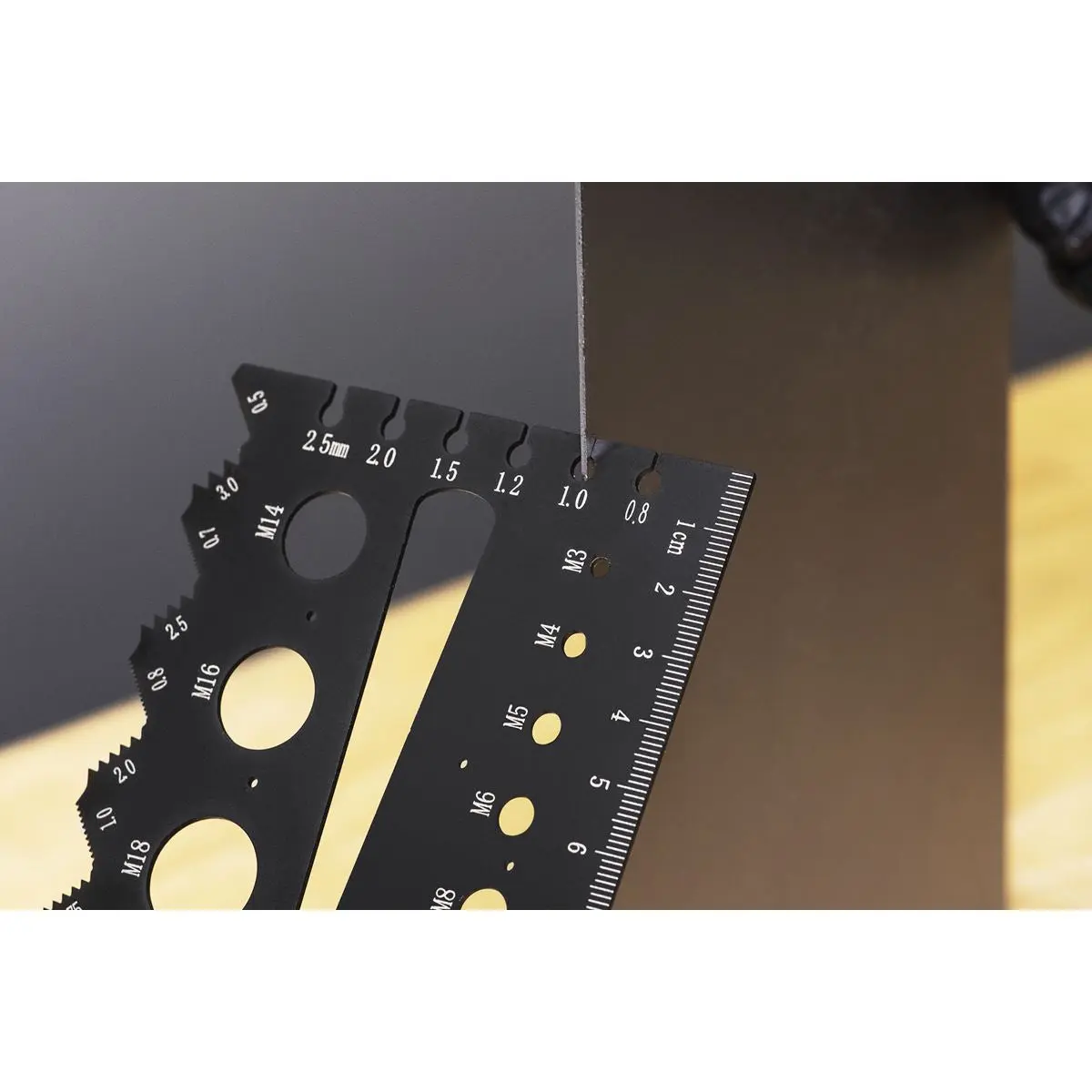

Wire Gauge: 0.8, 1, 1.2, 1.5, 2, 2.5mm.

Square: 15°, 30°, 45°, 60°, 90°.

Bolt Screw Length: 0-7cm.

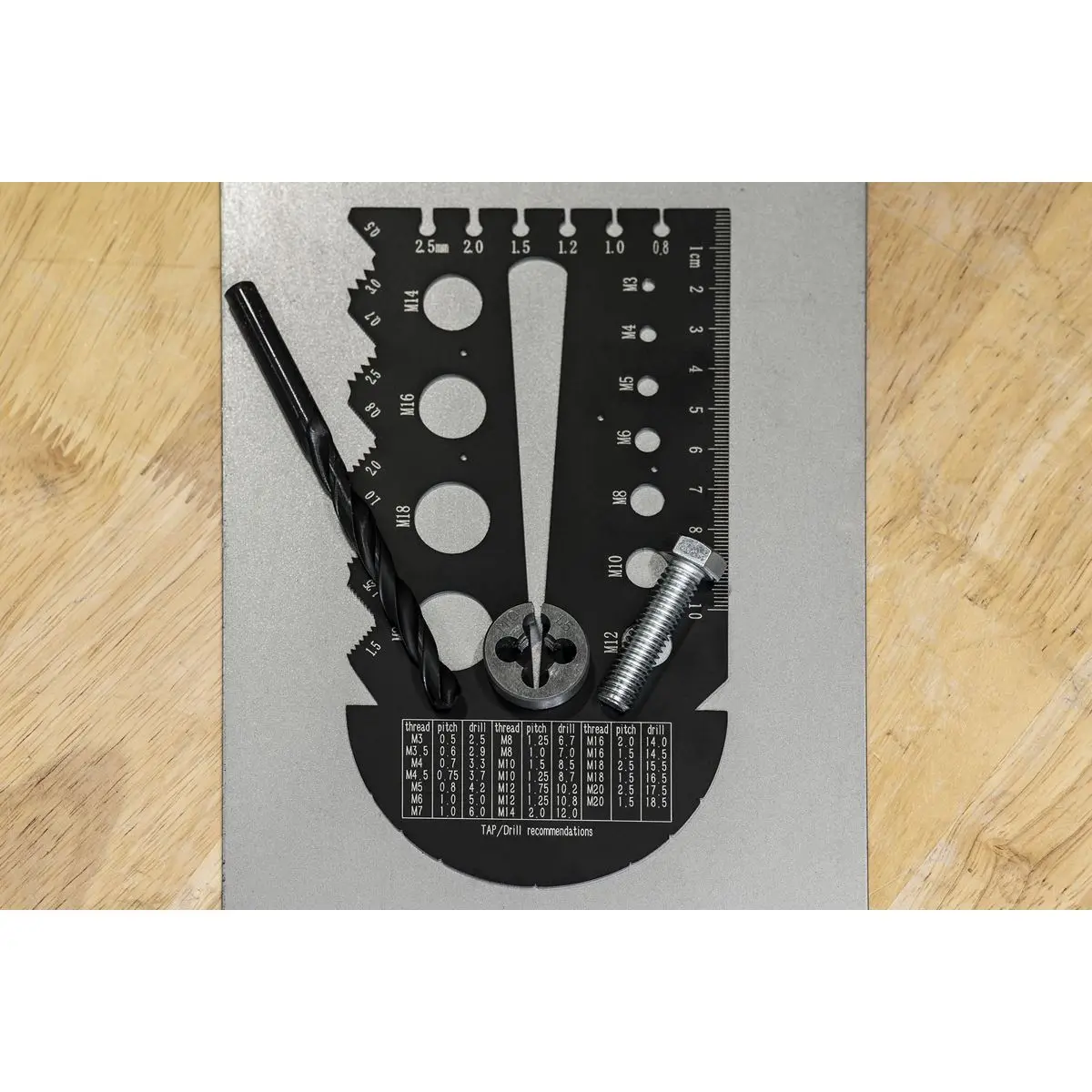

Tap/Drill Recommendation: M3-M20.

Checks the thickness of washers and diameter of electric wire.

Specification:

• Model No MGM1
• Brand: Sealey
• Nett Weight: 137.5g
• Bolt Screw Diameters: M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20
• Pitches: 3, 2.5, 2, 1.75, 1.5, 1.25, 1, 0.8, 0.7, 0.5mm (tpi)
• Square: 15°, 30°, 45°, 60°, 90°
• Tap/Drill Recommendation: M3-M20
• Wire Gauge: 0.8, 1.0, 1.2, 1.5, 2.0, 2.5mm

Product Guarantee: 1 Year
Catalogue Page: Page 239

Downloadable Files:

• Instructions: View Here
