Sealey Premier Premier Engine Crane 3 Tonne - Fixed

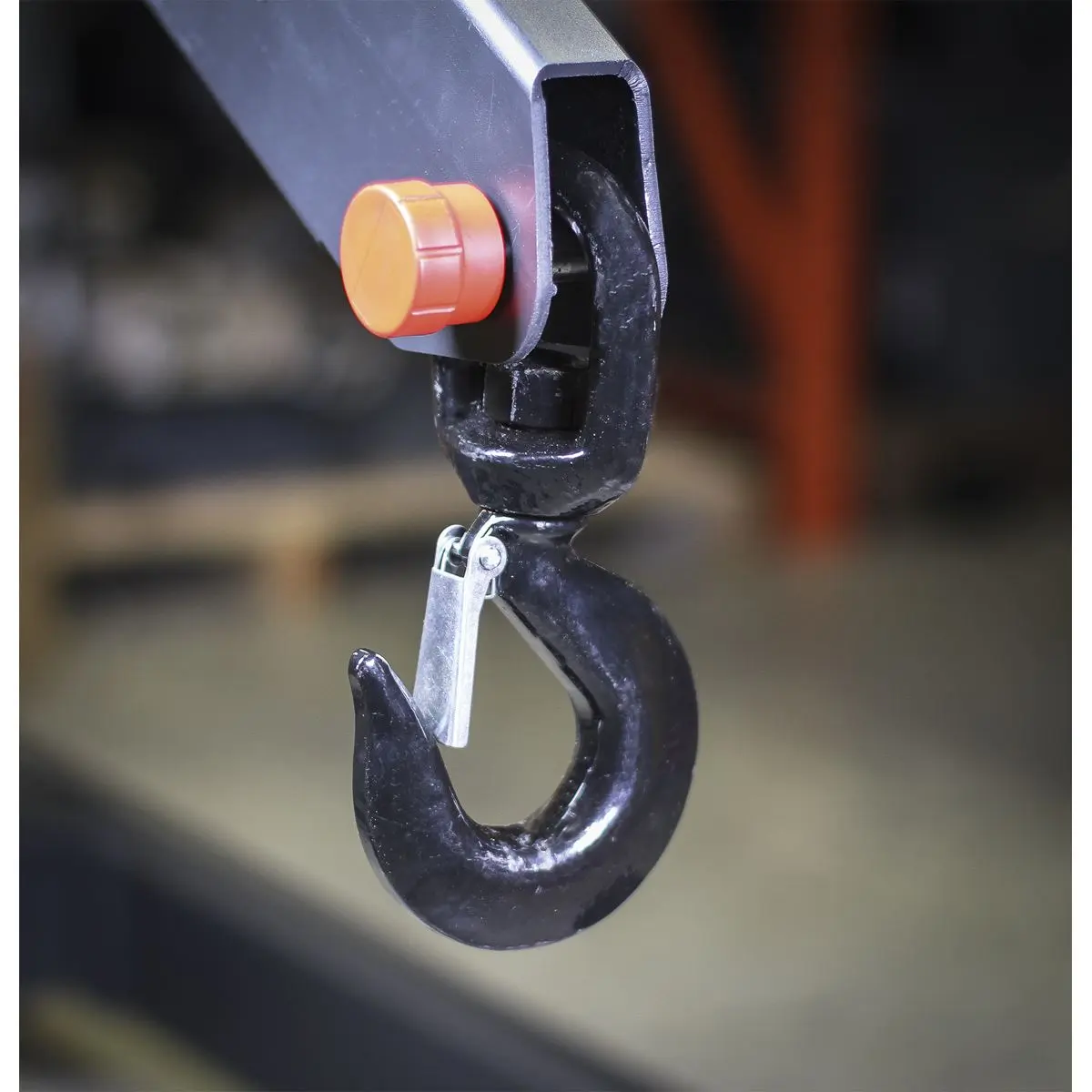

Professional 3 Tonne fixed crane with parallel legs, designed to accommodate a standard size pallet and features heavy-duty forged hook.

Lowers rapidly with no load, whilst providing smooth, controlled lowering under load conditions.

Beam can be set in 4-positions, with a capacity of 2000kg at its full extension of 1870mm.

Crane features two pumps one for slow, safe controlled lifting and a quick lift pump.

Weighs 299kg and is suitable for workshop use.

3 Year guarantee*.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No PFC301
• Brand: Sealey Premier
• Height Jib Down: 1930mm
• Height Legs Folded: n/a
• Height of Frame: 265mm
• Length Legs Extended: n/a
• Length of Jib Position 1: 1430mm
• Length of Jib Position 2: 1580mm
• Length of Jib Position 3: 1730mm
• Length of Jib Position 4: 1870mm
• Length of Jib Position 5: n/a
• Length: 2400mm
• Lifting Capacity in Position 1: 3000kg
• Lifting Capacity in Position 2: 2500kg
• Lifting Capacity in Position 3: 2300kg
• Lifting Capacity in Position 4: 2000kg
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Jib Position 1: 2720mm
• Max. Lift Ht at Jib Position 2: 2850mm
• Max. Lift Ht at Jib Position 3: 2950mm
• Max. Lift Ht at Jib Position 4: 3050mm
• Max. Lift Ht at Jib Position 5: n/a
• Nett Weight: 299kg
• Rear Width: 1275mm
• Width Front Frame: 1300mm
• Width Inside Front Frame: 1100mm

Product Guarantee: 3 Years
Catalogue Page: Page 319

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
