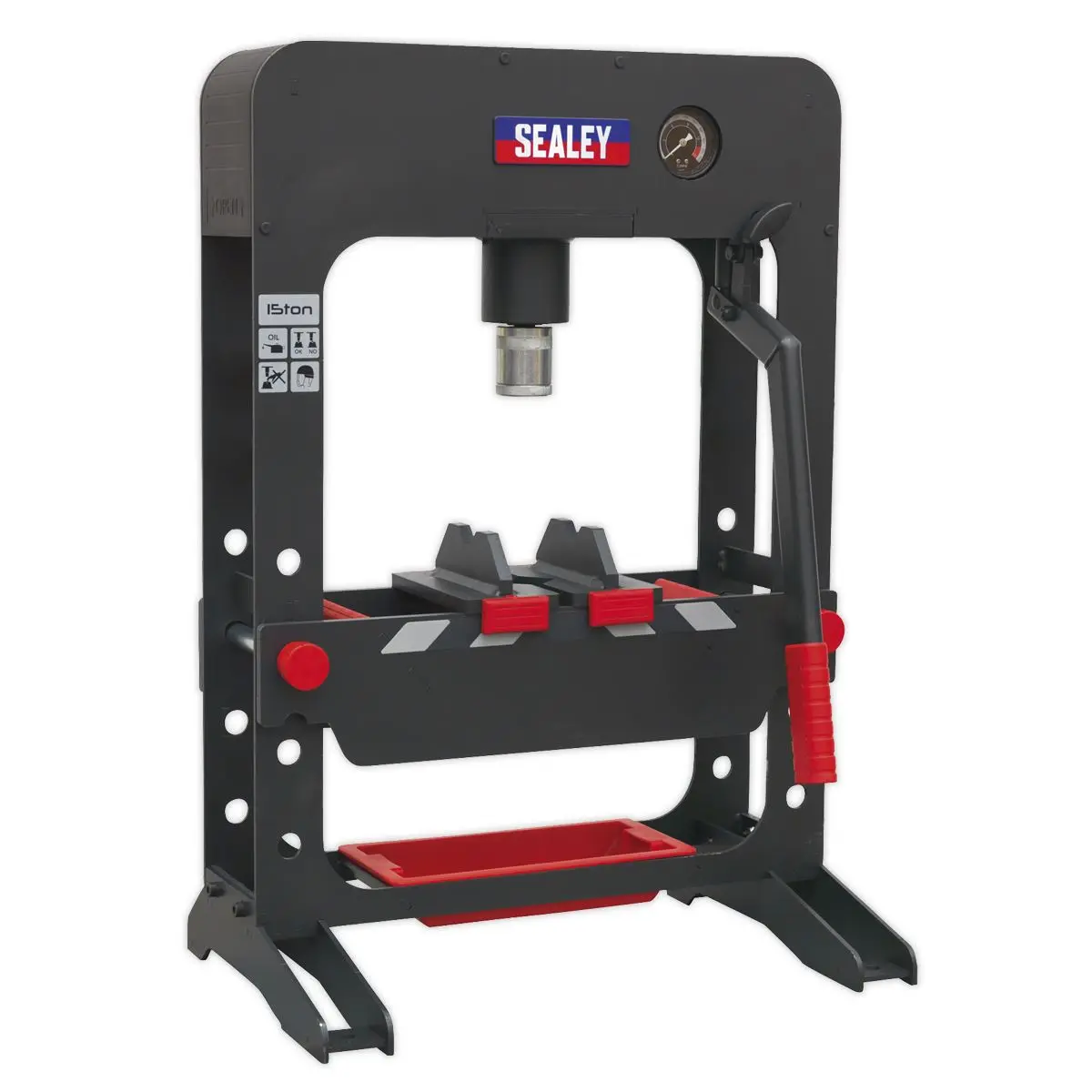

Sealey Premier Premier Hydraulic Press 15 Tonne Bench Type

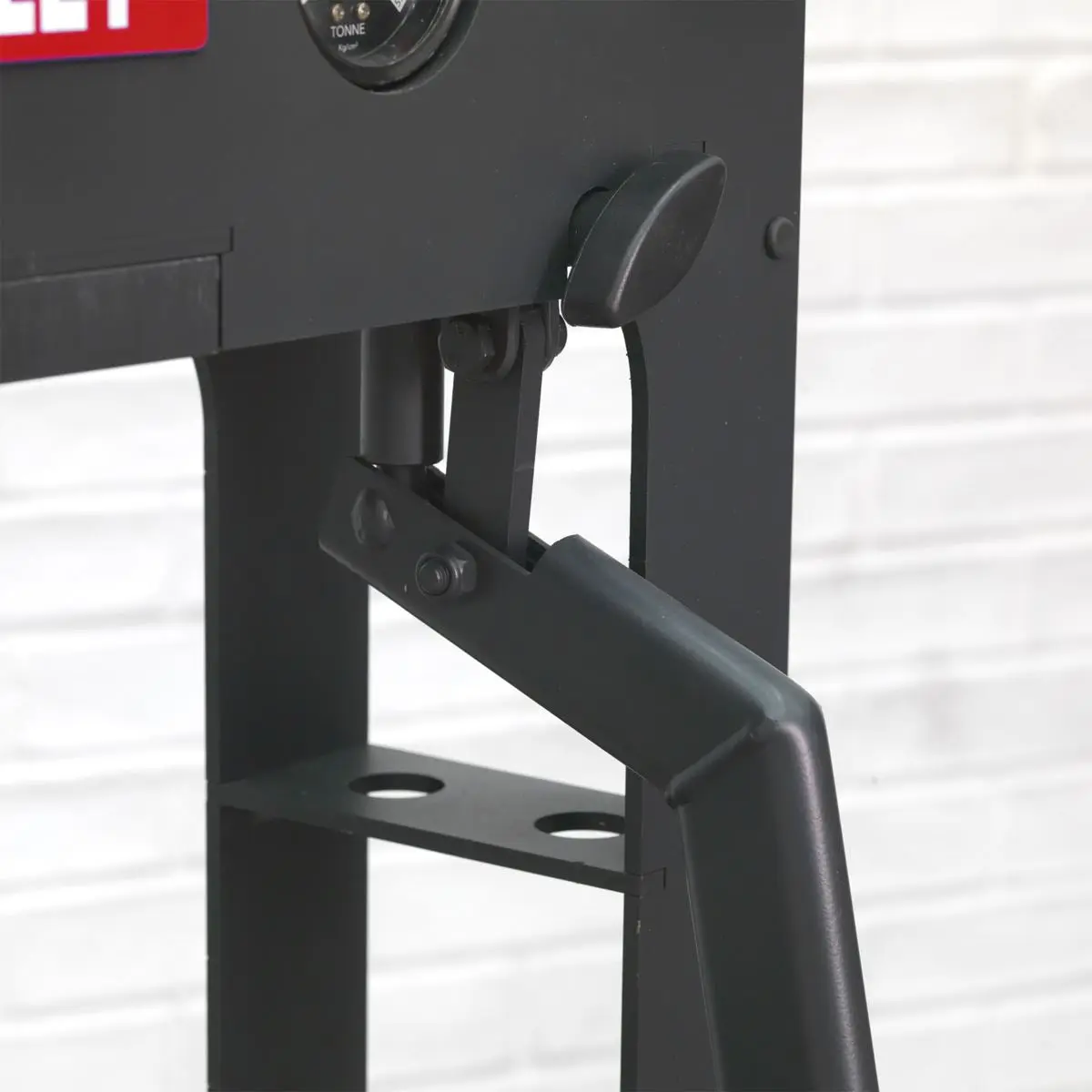

Heavy-duty steel frame construction with handle operated hydraulic pump unit.

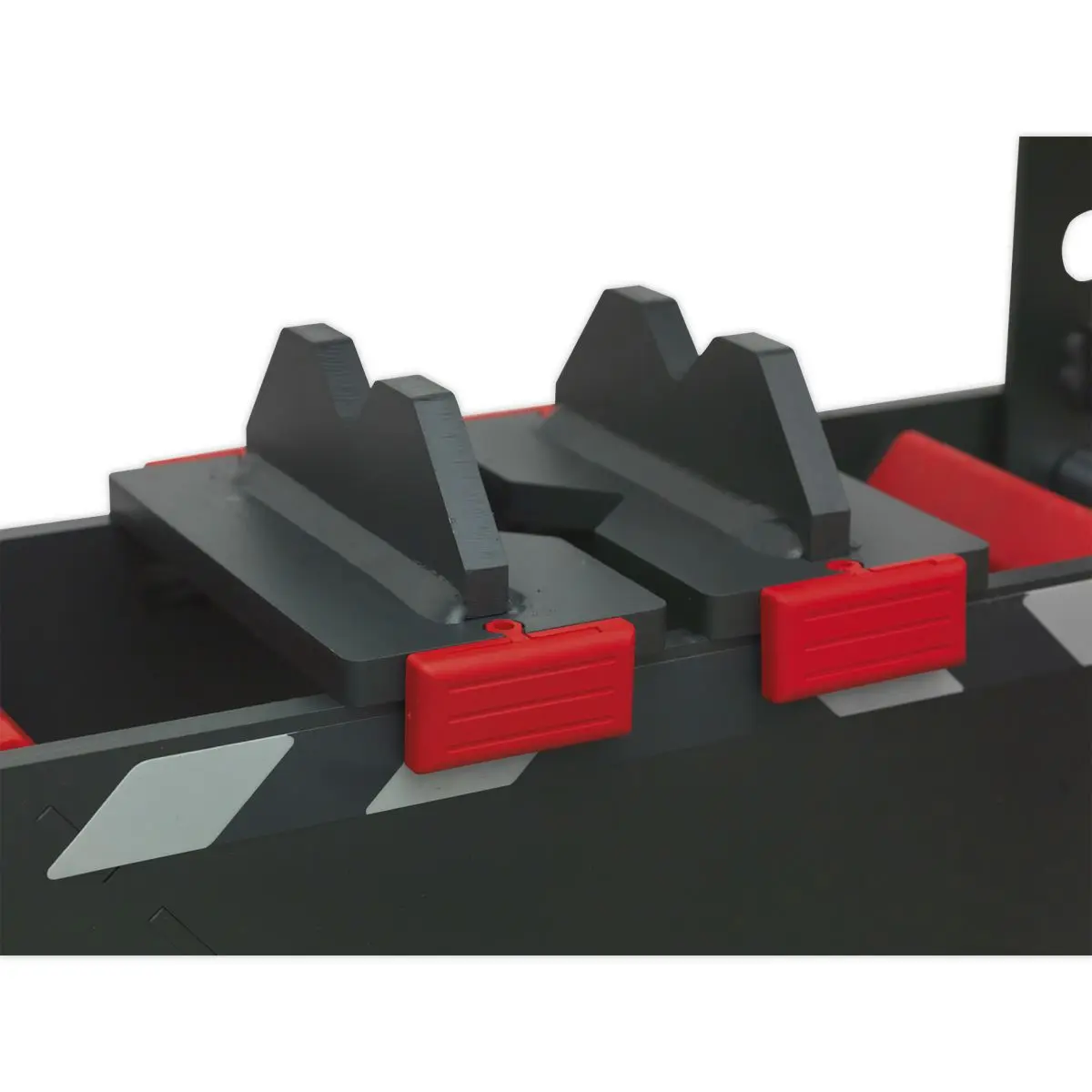

Patented V-block guides and adjustable work area with removable tray.

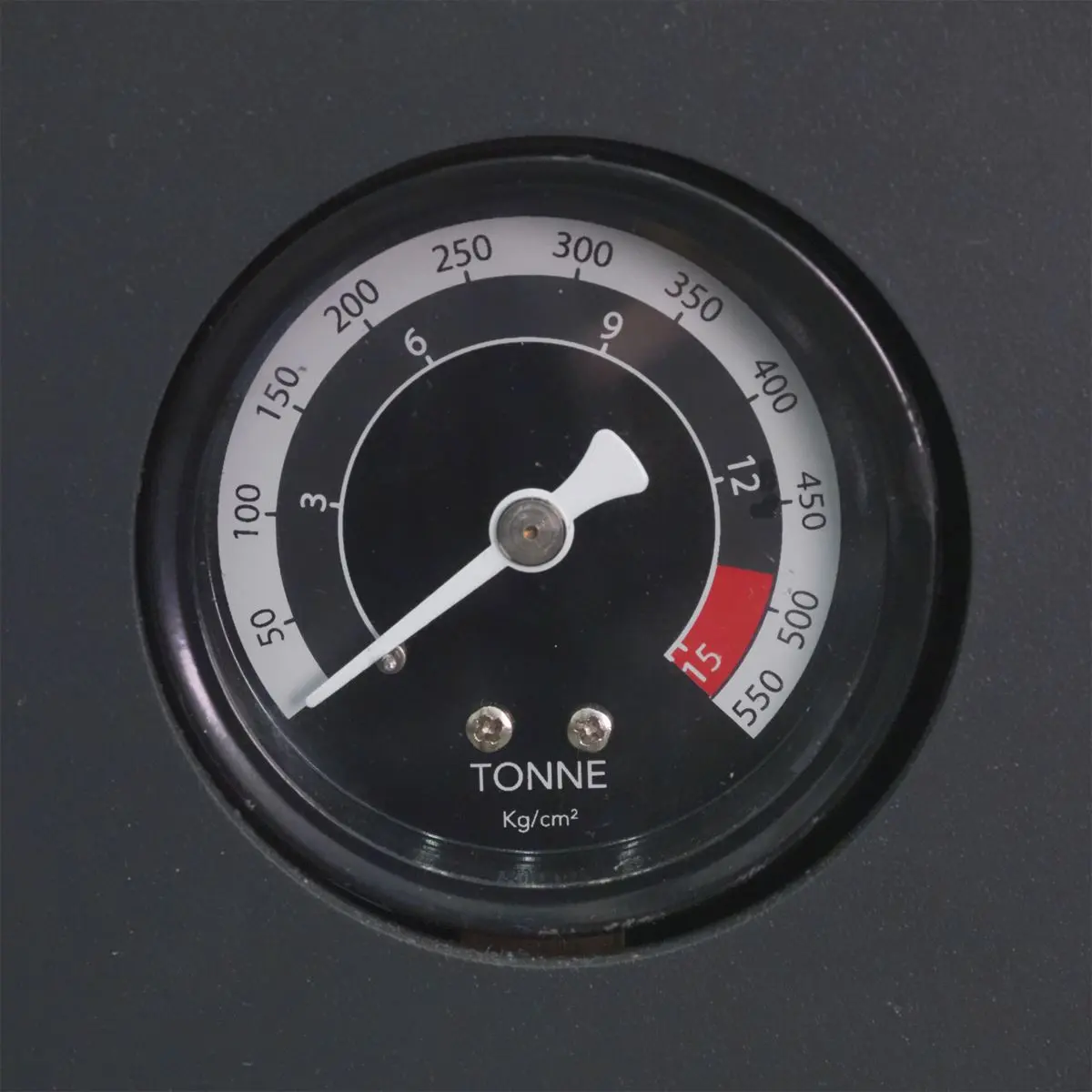

Frame head fitted with ram pressure gauge.

Storage for press pins included in frame (pins not included).

Supplied with flat pressing plate/V-blocks.

5 Year Guarantee*.

Specification:

• Model No PPB15
• Bench or Floor Mounting: Bench
• Brand: Sealey Premier
• Capacity: 15 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: n/a
• Maximum Height - Ram to Table: 338mm
• Minimum Height - Ram to Table: 95mm
• Nett Weight: 48kg
• Overall Height: 800mm
• Ram Diameter: Ø45mm
• Ram Stroke: 170mm
• Table Aperture: 132mm
• Type: Hydraulic
• Working Table Depth: 168mm
• Working Table Width: 350mm
• Working Table Width: 350mm

Product Guarantee: 5 Years
Catalogue Page: Page 319

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
