Sealey Plain Trolley 2 Tonne

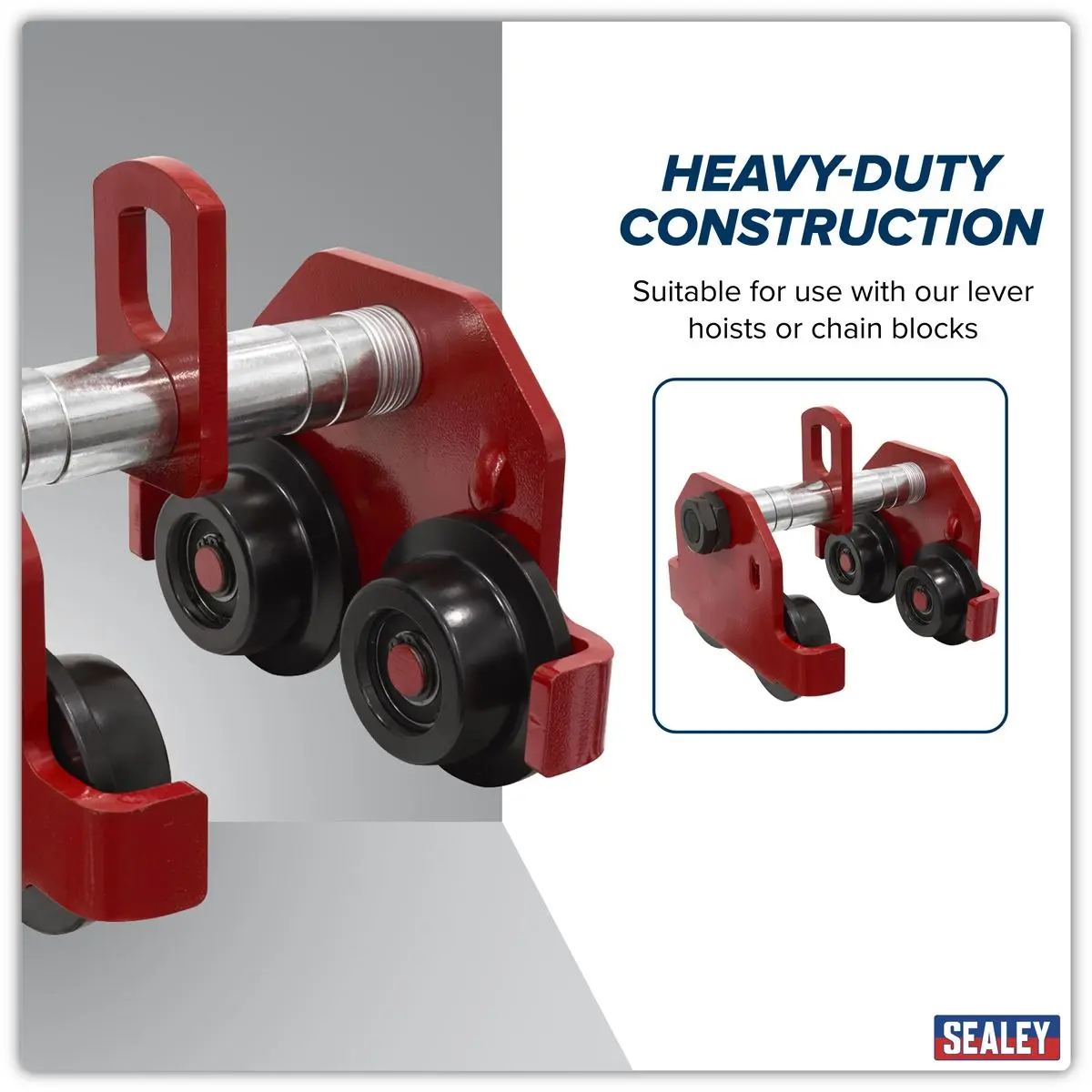

COMPATIBLE - Suitable for use with our lever hoists or chain blocks.

APPLICATION - Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.

ADJUSTABLE - Track width adjusts between 80-168mm.

WHEEL PROTECTION - Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

SMOOTH MOVEMENTS - Four evenly spaced wheels help to make the unit move smoothly along the load bearer.

Specification:

• Model No PT2000
• Brand: Sealey
• Nett Weight: 13kg
• Capacity: 2000kg
• Track Width Adjustable Range: 80-168mm
• Minimum Curve Radius: 1300mm
• A: 255mm
• B: 138mm
• C: 138mm
• D: 102mm
• E: 128mm
• Weight: 13kg
• Minimum Standard I-Beam Dimensions (D x W x Web): 180 x 100 x 6mm
• Maximum Distance Between Spans: 3000mm
• Maximum Standard I-Beam Dimensions (D x W x Web): 350 x 150 x 9mm
• Maximum Distance Between Spans: 9000mm
• Refer to catalogue for diagram:
• Refer to catalogue for diagram:

Product Guarantee: 1 Year
Catalogue Page: Page 894

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
