STABILA Type 196-2 K Masons Spirit Level for Bricklayers Aluminium Profile 16406

This masons spirit level has been specially developed for bricklaying. The integrated STABILA impact protection on the upper edge ensures deviations can be corrected immediately – construction material is aligned with gentle taps on the impact protection using the trowel. The finger-grip openings make it comfortable to use. The sturdy, reinforced aluminium rectangular profile, together with the STABILA installation technology featuring permanently cast-in vial ensure accuracy for demanding construction site applications. Spirit levels from STABILA – precision that lasts a lifetime.

Highlights:

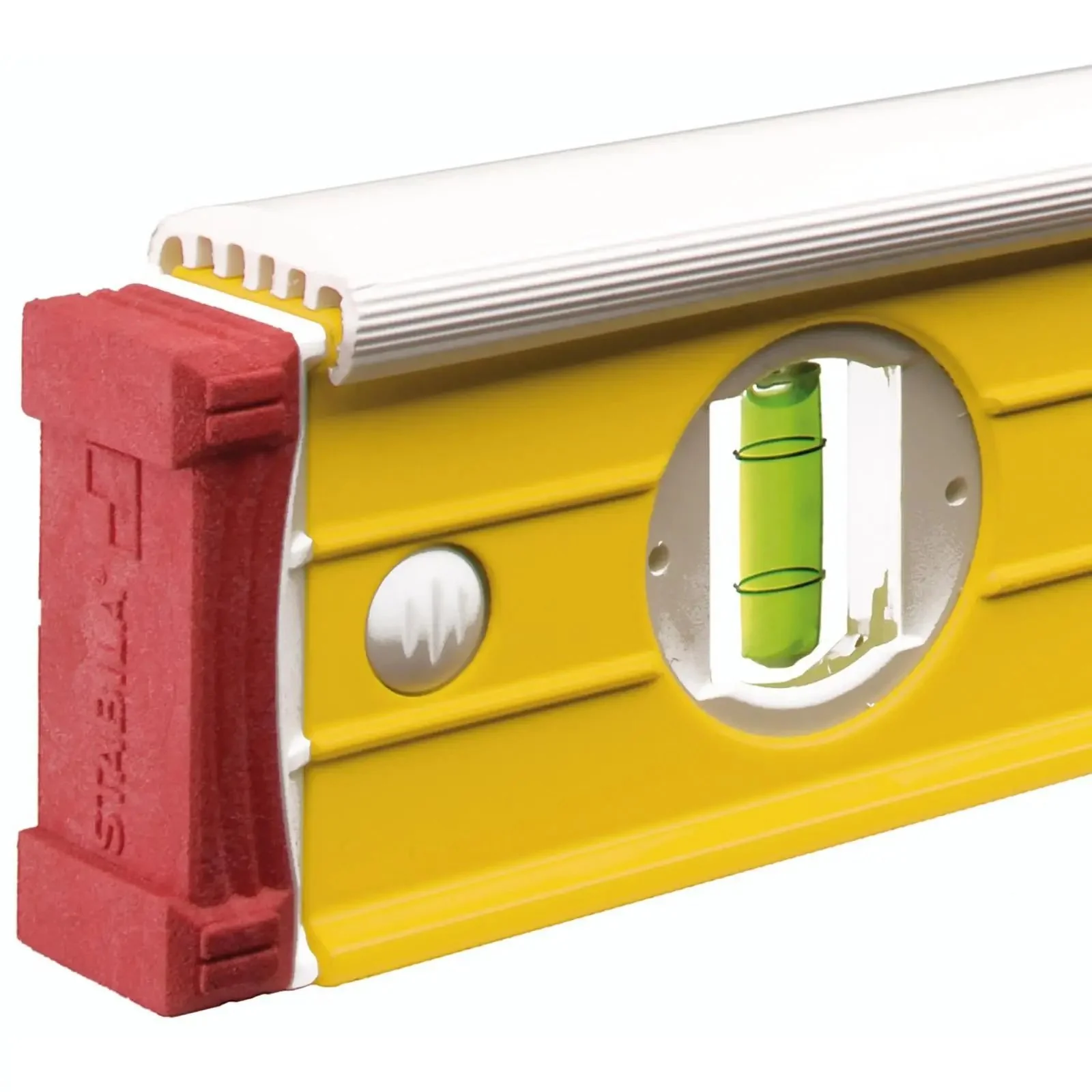

• Ultra-rigid aluminium rectangular profile with integrated STABILA impact protection for immediate correction of deviations – construction material is aligned with gentle taps on the impact protection, which does not require a change of tool.
• Finger-grip openings for easy and comfortable use.
• Reinforcing ribs for high stability and a secure hold while working.
• Spirit level with one precision-milled measuring surface – no discolourations on the surface; for example, on fair-faced brickwork.
• Always at eye level – the second vertical vial is offset towards the centre, making it easy to read in all measuring positions.
• Shock-absorbing, removable end caps – the two-component material mix protects the profile against impact.
• Easy to clean thanks to the electrostatic powder coating.
• STABILA installation technology ensures long-term accuracy – measuring accuracy in normal and reverse position of ± 0.5 mm/m.
• Equipment: 1 horizontal vial, 2 vertical vials, 1 milled measuring surface, 2 finger-grip openings, impact protection.

Features:

• Integrated STABILA impact protection – it is no longer necessary to continuously change tools when bricklaying Milled measuring surface – no discolourations on the surface
• Electrostatic powder coating makes it easy to clean
• Finger-grip openings for comfortable use
• Suitable for measuring in reverse position.

Specification:

• Measurement accuracy in normal position ±: 0.5 mm/m
• Measurement accuracy in reverse position ±: 0.5 mm/m
• Reverse measurement: Yes
• Number of vials: 2
• Number of vertical vials: 2 pc.
• Number of horizontal vials: 1 pc.
• Number of measuring surfaces: 1 pc.
• Measuring surface, milled: Yes

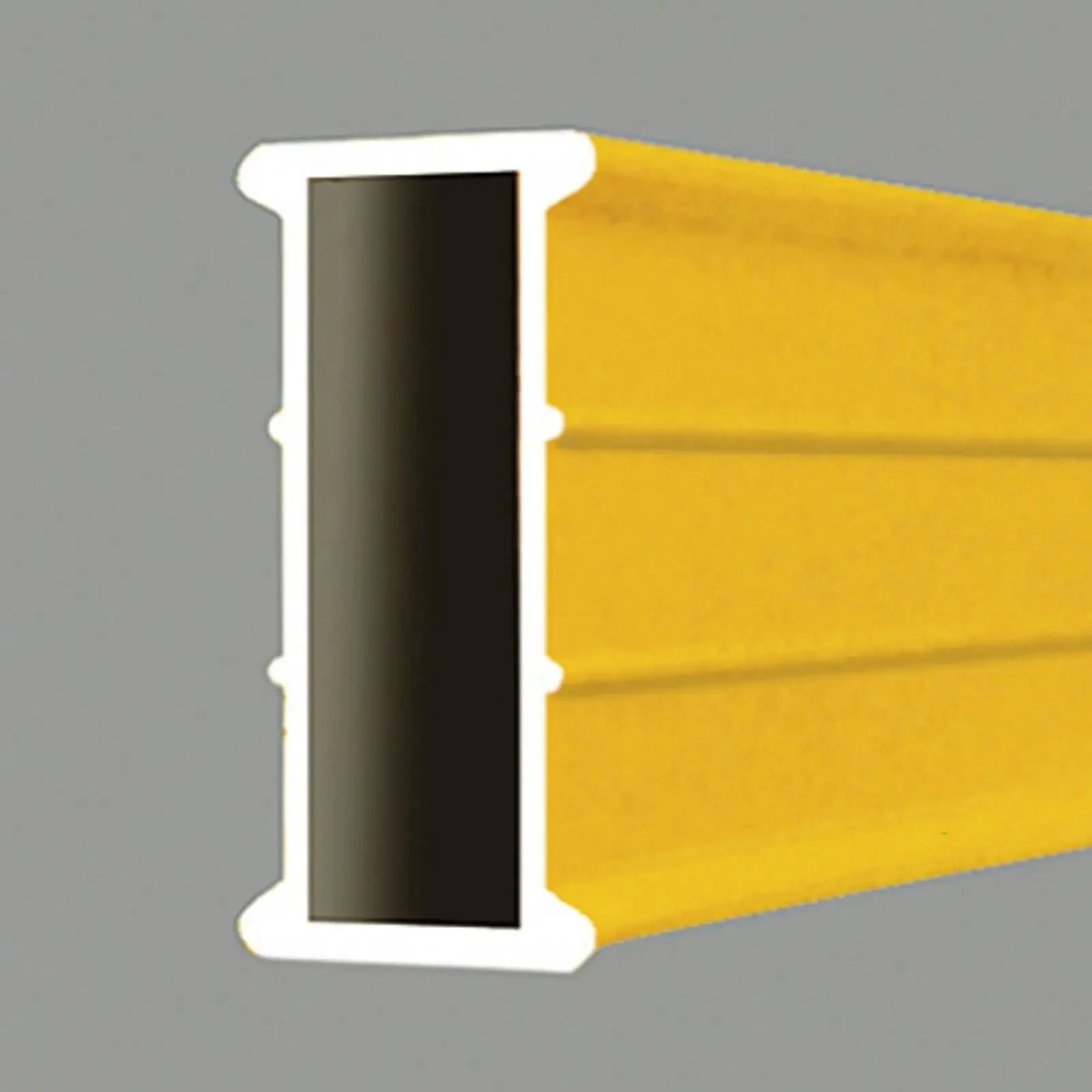

• Profile: Aluminium rectangular profile with reinforcing ribs
• Finger-grip opening: Yes
• End caps: Removable, shock-absorbing, slip-stopper
• Colour: Yellow
• Material: Aluminium
• Equipment: Impact protection
• Net weight: 1.411 kg
• Manufacturer's guarantee: 10 Years
